Ray Tracing Animation - Tutorial

Tutorial (Setup)

This is an extension of the Vulkan ray tracing tutorial.

We will implement two animation methods: only the transformation matrices, and animating the geometry itself.

Animating the Matrices

This first example shows how we can update the matrices used for instances in the TLAS.

Creating a Scene

In main.cpp we can create a new scene with a ground plane and 21 instances of the Wuson model, by replacing the helloVk.loadModel calls in main(). The code below creates all of the instances at the same position, but we will displace them later in the animation function. If you run the example, you will find that the rendering is considerably slow, because the geometries are exactly at the same position and the acceleration structure does not deal with this well.

  helloVk.loadModel(nvh::findFile("media/scenes/plane.obj", defaultSearchPaths),
                    nvmath::scale_mat4(nvmath::vec3f(2.f, 1.f, 2.f)));
  helloVk.loadModel(nvh::findFile("media/scenes/wuson.obj", defaultSearchPaths));
  HelloVulkan::ObjInstance inst = helloVk.m_objInstance.back();
  for(int i = 0; i < 20; i++)
    helloVk.m_objInstance.push_back(inst);

Animation Function

We want to have all of the Wuson models running in a circle, and we will first modify the rasterizer to handle this. Animating the transformation matrices will be done entirely on the CPU, and we will copy the computed transformation to the GPU. In the next example, the animation will be done on the GPU using a compute shader.

Add the declaration of the animation to the HelloVulkan class.

void animationInstances(float time);

The first part computes the transformations for all of the Wuson models, placing each one behind another.

void HelloVulkan::animationInstances(float time)
{
  const int32_t nbWuson     = static_cast<int32_t>(m_objInstance.size() - 1);
  const float   deltaAngle  = 6.28318530718f / static_cast<float>(nbWuson);
  const float   wusonLength = 3.f;
  const float   radius      = wusonLength / (2.f * sin(deltaAngle / 2.0f));
  const float   offset      = time * 0.5f;

  for(int i = 0; i < nbWuson; i++)
  {
    int          wusonIdx = i + 1;
    ObjInstance& inst     = m_objInstance[wusonIdx];
    inst.transform        = nvmath::rotation_mat4_y(i * deltaAngle + offset)
                     * nvmath::translation_mat4(radius, 0.f, 0.f);
    inst.transformIT = nvmath::transpose(nvmath::invert(inst.transform));
  }

Next, we update the buffer that describes the scene, which is used by the rasterizer to set each object's position, and also by the ray tracer to compute shading normals.

  // Update the buffer
  vk::DeviceSize bufferSize = m_objInstance.size() * sizeof(ObjInstance);
  nvvkBuffer stagingBuffer = m_alloc.createBuffer(bufferSize, vk::BufferUsageFlagBits::eTransferSrc,
                                                  vk::MemoryPropertyFlagBits::eHostVisible);
  // Copy data to staging buffer
  auto* gInst = m_alloc.map(stagingBuffer);
  memcpy(gInst, m_objInstance.data(), bufferSize);
  m_alloc.unmap(stagingBuffer);
  // Copy staging buffer to the Scene Description buffer
  nvvk::CommandPool genCmdBuf(m_device, m_graphicsQueueIndex);
  vk::CommandBuffer cmdBuf = genCmdBuf.createCommandBuffer();
  cmdBuf.copyBuffer(stagingBuffer.buffer, m_sceneDesc.buffer, vk::BufferCopy(0, 0, bufferSize));
  m_debug.endLabel(cmdBuf);
  genCmdBuf.submitAndWait(cmdBuf);
  m_alloc.destroy(stagingBuffer);
}

Note: We could have used cmdBuf.updateBuffer<ObjInstance>(m_sceneDesc.buffer, 0, m_objInstance) to update the buffer, but this function only works for buffers with less than 65,536 bytes. If we had 2000 Wuson models, this call wouldn't work.

Loop Animation

In main(), just before the main loop, add a variable to hold the start time. We will use this time in our animation function.

  auto start = std::chrono::system_clock::now();

Inside the while loop, just before calling appBase.prepareFrame(), invoke the animation function.

    std::chrono::duration<float> diff = std::chrono::system_clock::now() - start;
    helloVk.animationInstances(diff.count());

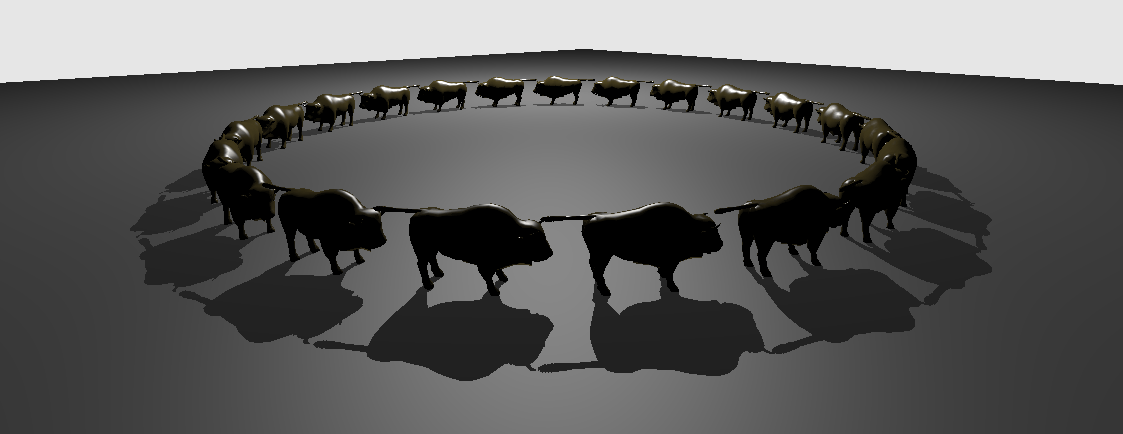

If you run the application, the Wuson models will be running in a circle when using the rasterizer, but they will still be at their original positions in the ray traced version. We will need to update the TLAS for this.

Update TLAS

Since we want to update the transformation matrices in the TLAS, we need to keep some of the objects used to create it.

First, move the vector of nvvk::RaytracingBuilder::Instance objects from HelloVulkan::createTopLevelAS() to the HelloVulkan class.

std::vector<nvvk::RaytracingBuilder::Instance> m_tlas;

Make sure to rename it to m_tlas, instead of tlas.

One important point is that we need to set the TLAS build flags to allow updates, by adding thevk::BuildAccelerationStructureFlagBitsKHR::eAllowUpdate flag. This is absolutely needed, since otherwise the TLAS cannot be updated.

void HelloVulkan::createTopLevelAS()
{
  m_tlas.reserve(m_objInstance.size());
  for(int i = 0; i < static_cast<int>(m_objInstance.size()); i++)
  {
    nvvk::RaytracingBuilder::Instance rayInst;
    rayInst.transform  = m_objInstance[i].transform;  // Position of the instance
    rayInst.instanceId = i;                           // gl_InstanceID
    rayInst.blasId     = m_objInstance[i].objIndex;
    rayInst.hitGroupId = m_objInstance[i].hitgroup;
    rayInst.flags      = VK_GEOMETRY_INSTANCE_TRIANGLE_CULL_DISABLE_BIT_NV;
    m_tlas.emplace_back(rayInst);
  }
  m_rtBuilder.buildTlas(m_tlas, vk::BuildAccelerationStructureFlagBitsKHR::ePreferFastTrace
                                    | vk::BuildAccelerationStructureFlagBitsKHR::eAllowUpdate);
}

Back in HelloVulkan::animationInstances(), we need to copy the new computed transformation matrices to the vector of nvvk::RaytracingBuilder::Instance objects.

In the for loop, add at the end

   nvvk::RaytracingBuilder::Instance& tinst = m_tlas[wusonIdx];
   tinst.transform                            = inst.transform;

The last point is to call the update at the end of the function.

  m_rtBuilder.buildTlas(m_tlas, m_rtFlags, true);

nvvk::RaytracingBuilder::buildTlas (Implementation)

We are using nvvk::RaytracingBuilder to update the matrices for convenience. There is only a small variation with constructing the matrices and updating them. The main differences are:

• The VkAccelerationStructureBuildGeometryInfoKHR mode will be set to VK_BUILD_ACCELERATION_STRUCTURE_MODE_UPDATE_KHR
• We will not create the acceleration structure, but reuse it.
• The source and destination of VkAccelerationStructureCreateInfoKHR will both use the previously created acceleration structure.

What is happening is the buffer containing all matrices will be updated and the vkCmdBuildAccelerationStructuresKHR will update the acceleration in place.

BLAS Animation

In the previous chapter, we updated the transformation matrices. In this one we will modify vertices in a compute shader.

Adding a Sphere

In this chapter, we will animate a sphere. In main.cpp, set up the scene like this:

  helloVk.loadModel(nvh::findFile("media/scenes/plane.obj", defaultSearchPaths),
                    nvmath::scale_mat4(nvmath::vec3f(2.f, 1.f, 2.f)));
  helloVk.loadModel(nvh::findFile("media/scenes/wuson.obj", defaultSearchPaths));
  HelloVulkan::ObjInstance inst = helloVk.m_objInstance.back();
  for(int i = 0; i < 5; i++)
    helloVk.m_objInstance.push_back(inst);
  helloVk.loadModel(nvh::findFile("media/scenes/sphere.obj", defaultSearchPaths));

Because we now have a new instance, we have to adjust the calculation of the number of Wuson models in HelloVulkan::animationInstances().

  const int32_t nbWuson     = static_cast<int32_t>(m_objInstance.size() - 2);

Compute Shader

The compute shader will update the vertices in-place.

Add all of the following members to the HelloVulkan class:

  void createCompDescriptors();
  void updateCompDescriptors(nvvkBuffer& vertex);
  void createCompPipelines();

  nvvk::DescriptorSetBindings m_compDescSetLayoutBind;
  vk::DescriptorPool          m_compDescPool;
  vk::DescriptorSetLayout     m_compDescSetLayout;
  vk::DescriptorSet           m_compDescSet;
  vk::Pipeline                m_compPipeline;
  vk::PipelineLayout          m_compPipelineLayout;

The compute shader will work on a single VertexObj buffer.

void HelloVulkan::createCompDescriptors()
{
  m_compDescSetLayoutBind.addBinding(vk::DescriptorSetLayoutBinding(
      0, vk::DescriptorType::eStorageBuffer, 1, vk::ShaderStageFlagBits::eCompute));

  m_compDescSetLayout = m_compDescSetLayoutBind.createLayout(m_device);
  m_compDescPool      = m_compDescSetLayoutBind.createPool(m_device, 1);
  m_compDescSet       = nvvk::allocateDescriptorSet(m_device, m_compDescPool, m_compDescSetLayout);
}

updateCompDescriptors will set the set the descriptor to the buffer of VertexObj objects to which the animation will be applied.

void HelloVulkan::updateCompDescriptors(nvvkBuffer& vertex)
{
  std::vector<vk::WriteDescriptorSet> writes;
  vk::DescriptorBufferInfo            dbiUnif{vertex.buffer, 0, VK_WHOLE_SIZE};
  writes.emplace_back(m_compDescSetLayoutBind.makeWrite(m_compDescSet, 0, dbiUnif));
  m_device.updateDescriptorSets(static_cast<uint32_t>(writes.size()), writes.data(), 0, nullptr);
}

The compute pipeline will consist of a simple shader and a push constant, which will be used to set the animation time.

void HelloVulkan::createCompPipelines()
{
  // pushing time
  vk::PushConstantRange push_constants = {vk::ShaderStageFlagBits::eCompute, 0, sizeof(float)};
  vk::PipelineLayoutCreateInfo layout_info{{}, 1, &m_compDescSetLayout, 1, &push_constants};
  m_compPipelineLayout = m_device.createPipelineLayout(layout_info);
  vk::ComputePipelineCreateInfo computePipelineCreateInfo{{}, {}, m_compPipelineLayout};

  computePipelineCreateInfo.stage =
      nvvk::createShaderStageInfo(m_device,
                                  nvh::loadFile("shaders/anim.comp.spv", true, defaultSearchPaths),
                                  VK_SHADER_STAGE_COMPUTE_BIT);
  m_compPipeline = m_device.createComputePipeline({}, computePipelineCreateInfo, nullptr);
  m_device.destroy(computePipelineCreateInfo.stage.module);
}

Finally, destroy the resources in HelloVulkan::destroyResources():

  m_device.destroy(m_compDescPool);
  m_device.destroy(m_compDescSetLayout);
  m_device.destroy(m_compPipeline);
  m_device.destroy(m_compPipelineLayout);

anim.comp

The compute shader will be simple. We need to add a new shader file, anim.comp, to the shaders filter in the solution.

This will move each vertex up and down over time.

#version 460
#extension GL_ARB_separate_shader_objects : enable
#extension GL_EXT_scalar_block_layout : enable
#extension GL_GOOGLE_include_directive : enable
#include "wavefront.glsl"

layout(binding = 0, scalar) buffer Vertices
{
  Vertex v[];
}
vertices;

layout(push_constant) uniform shaderInformation
{
  float iTime;
}
pushc;

void main()
{
  Vertex v0 = vertices.v[gl_GlobalInvocationID.x];

  // Compute vertex position
  const float PI       = 3.14159265;
  const float signY    = (v0.pos.y >= 0 ? 1 : -1);
  const float radius   = length(v0.pos.xz);
  const float argument = pushc.iTime * 4 + radius * PI;
  const float s        = sin(argument);
  v0.pos.y             = signY * abs(s) * 0.5;

  // Compute normal
  if(radius == 0.0f)
  {
    v0.nrm = vec3(0.0f, signY, 0.0f);
  }
  else
  {
    const float c        = cos(argument);
    const float xzFactor = -PI * s * c;
    const float yFactor  = 2.0f * signY * radius * abs(s);
    v0.nrm               = normalize(vec3(v0.pos.x * xzFactor, yFactor, v0.pos.z * xzFactor));
  }

  vertices.v[gl_GlobalInvocationID.x] = v0;
}

Animating the Object

First add the declaration of the animation function in HelloVulkan:

void animationObject(float time);

The implementation only pushes the current time and calls the compute shader (dispatch).

void HelloVulkan::animationObject(float time)
{
  ObjModel& model = m_objModel[2];

  updateCompDescriptors(model.vertexBuffer);

  nvvk::CommandPool genCmdBuf(m_device, m_graphicsQueueIndex);
  vk::CommandBuffer cmdBuf = genCmdBuf.createCommandBuffer();

  cmdBuf.bindPipeline(vk::PipelineBindPoint::eCompute, m_compPipeline);
  cmdBuf.bindDescriptorSets(vk::PipelineBindPoint::eCompute, m_compPipelineLayout, 0,
                            {m_compDescSet}, {});
  cmdBuf.pushConstants(m_compPipelineLayout, vk::ShaderStageFlagBits::eCompute, 0, sizeof(float),
                       &time);
  cmdBuf.dispatch(model.nbVertices, 1, 1);
  genCmdBuf.submitAndWait(cmdBuf);
}

Invoking Animation

In main.cpp, after the other resource creation functions, add the creation functions for the compute shader.

  helloVk.createCompDescriptors();
  helloVk.createCompPipelines();

In the rendering loop, before the call to animationInstances, call the object animation function.

  helloVk.animationObject(diff.count());

Note: Always update the TLAS when BLAS are modified. This will make sure that the TLAS knows about the new bounding box sizes.

Note: At this point, the object should be animated when using the rasterizer, but should still be immobile when using the ray tracer.

Update BLAS

In nvvk::RaytracingBuilder in raytrace_vkpp.hpp, we can add a function to update a BLAS whose vertex buffer was previously updated. This function is very similar to the one used for instances, but in this case, there is no buffer transfer to do.

  //--------------------------------------------------------------------------------------------------
  // Refit the BLAS from updated buffers
  //
  void updateBlas(uint32_t blasIdx)
  {
    Blas& blas = m_blas[blasIdx];

    // Compute the amount of scratch memory required by the AS builder to update    the BLAS
    VkAccelerationStructureMemoryRequirementsInfoKHR memoryRequirementsInfo{
        VK_STRUCTURE_TYPE_ACCELERATION_STRUCTURE_MEMORY_REQUIREMENTS_INFO_KHR};
    memoryRequirementsInfo.type = VK_ACCELERATION_STRUCTURE_MEMORY_REQUIREMENTS_TYPE_UPDATE_SCRATCH_KHR;
    memoryRequirementsInfo.accelerationStructure = blas.as.accel;
    memoryRequirementsInfo.buildType             = VK_ACCELERATION_STRUCTURE_BUILD_TYPE_DEVICE_KHR;

    VkMemoryRequirements2 reqMem{VK_STRUCTURE_TYPE_MEMORY_REQUIREMENTS_2};
    vkGetAccelerationStructureMemoryRequirementsKHR(m_device, &memoryRequirementsInfo, &reqMem);
    VkDeviceSize scratchSize = reqMem.memoryRequirements.size;

    // Allocate the scratch buffer
    nvvkBuffer scratchBuffer =
        m_alloc.createBuffer(scratchSize, VK_BUFFER_USAGE_RAY_TRACING_BIT_KHR | VK_BUFFER_USAGE_SHADER_DEVICE_ADDRESS_BIT);
    VkBufferDeviceAddressInfo bufferInfo{VK_STRUCTURE_TYPE_BUFFER_DEVICE_ADDRESS_INFO};
    bufferInfo.buffer              = scratchBuffer.buffer;
    VkDeviceAddress scratchAddress = vkGetBufferDeviceAddress(m_device, &bufferInfo);


    const VkAccelerationStructureGeometryKHR*   pGeometry = blas.asGeometry.data();
    VkAccelerationStructureBuildGeometryInfoKHR asInfo{VK_STRUCTURE_TYPE_ACCELERATION_STRUCTURE_BUILD_GEOMETRY_INFO_KHR};
    asInfo.type                      = VK_ACCELERATION_STRUCTURE_TYPE_BOTTOM_LEVEL_KHR;
    asInfo.flags                     = blas.flags;
    asInfo.update                    = VK_TRUE;
    asInfo.srcAccelerationStructure  = blas.as.accel;
    asInfo.dstAccelerationStructure  = blas.as.accel;
    asInfo.geometryArrayOfPointers   = VK_FALSE;
    asInfo.geometryCount             = (uint32_t)blas.asGeometry.size();
    asInfo.ppGeometries              = &pGeometry;
    asInfo.scratchData.deviceAddress = scratchAddress;

    std::vector<const VkAccelerationStructureBuildOffsetInfoKHR*> pBuildOffset(blas.asBuildOffsetInfo.size());
    for(size_t i = 0; i < blas.asBuildOffsetInfo.size(); i++)
      pBuildOffset[i] = &blas.asBuildOffsetInfo[i];

    // Update the instance buffer on the device side and build the TLAS
    nvvk::CommandPool genCmdBuf(m_device, m_queueIndex);
    VkCommandBuffer   cmdBuf = genCmdBuf.createCommandBuffer();


    // Update the acceleration structure. Note the VK_TRUE parameter to trigger the update,
    // and the existing BLAS being passed and updated in place
    vkCmdBuildAccelerationStructureKHR(cmdBuf, 1, &asInfo, pBuildOffset.data());

    genCmdBuf.submitAndWait(cmdBuf);
    m_alloc.destroy(scratchBuffer);
  }

The previous function (updateBlas) uses geometry information stored in m_blas. To be able to re-use this information, we need to keep the structure of nvvk::RaytracingBuilderKHR::Blas objects used for its creation.

Move the nvvk::RaytracingBuilderKHR::Blas vector from HelloVulkan::createBottomLevelAS() to the HelloVulkan class, renaming it to m_blas.

  std::vector<nvvk::RaytracingBuilderKHR::Blas>         m_blas;

As with the TLAS, the BLAS needs to allow updates. We will also enable the VK_BUILD_ACCELERATION_STRUCTURE_PREFER_FAST_BUILD_BIT_KHR flag, which indicates that the given acceleration structure build should prioritize build time over trace performance.

void HelloVulkan::createBottomLevelAS()
{
  // BLAS - Storing each primitive in a geometry
  m_blas.reserve(m_objModel.size());
  for(const auto & obj : m_objModel)
  {
    auto blas = objectToVkGeometryKHR(obj);

    // We could add more geometry in each BLAS, but we add only one for now
    m_blas.push_back(blas);
  }
  m_rtBuilder.buildBlas(m_blas, vk::BuildAccelerationStructureFlagBitsKHR::eAllowUpdate
                                    | vk::BuildAccelerationStructureFlagBitsKHR::ePreferFastBuild);
}

Finally, we can add a line at the end of HelloVulkan::animationObject() to update the BLAS.

m_rtBuilder.updateBlas(2);
